Vehicle Overview
The 2025 Ford Transit Custom is a mid-size van designed for commercial versatility and passenger-car comfort. Built on Ford’s global van architecture since 2012, it’s offered in Cargo (panel van) and Tourneo (passenger shuttle) variants, with two wheelbases (L1 / L2) and roof heights (H1 / H2). The Custom balances payload capacity, driving ease, and modern connectivity, making it a go-to for tradespeople, fleet operators, and shuttle services.
| Segment | Mid-Size Van |
| Body Style | 3- or 5-door panel van or 5- to 9-seat MPV |
| Model Year | 2025 (third generation facelift) |
| Key Variants | Cargo, Cargo Kombi, Tourneo Custom |
Key Specifications
| Specification | Cargo L1H1 | Cargo L2H2 | Tourneo Custom L1H1 |
|---|---|---|---|
| Engine | 2.0 L EcoBlue Diesel | 2.0 L EcoBlue Diesel | 2.0 L EcoBlue Diesel |
| Power | 105 PS / 350 Nm | 130 PS / 370 Nm | 170 PS / 405 Nm |
| Transmission | 6-speed manual | 6-speed manual / 6-sp auto | 6-speed automatic |
| Drivetrain | Front-wheel drive | Front-wheel drive | Front-wheel drive |
| Payload | Up to 1,200 kg | Up to 1,050 kg | N/A |
| Cargo Volume | 6.0 m³ | 8.3 m³ | N/A |
| Dimensions (L×W×H) | 4,973×2,137×1,986 mm | 5,339×2,137×2,252 mm | 4,973×2,137×1,986 mm |
| Wheelbase | 3,130 mm | 3,460 mm | 3,130 mm |
| 0–100 km/h | ~14.5 s | ~15.0 s | ~13.0 s |
| Top Speed | 160 km/h | 160 km/h | 175 km/h |
Exterior Design
Boxy yet refined profile with sculpted front fascia and integrated skid plate.
Sliding side doors on one or both sides, with low sill for easy loading.
Split rear doors open to 180°; optional barn-door window glass on Cargo Kombi and Tourneo.
Roof options include factory-fitted rails or crossbars; H2 model provides extra headroom.
| Wheel choices | 16″ steel on base, 16″–17″ alloys on upper grades, with optional aero covers for efficiency. |

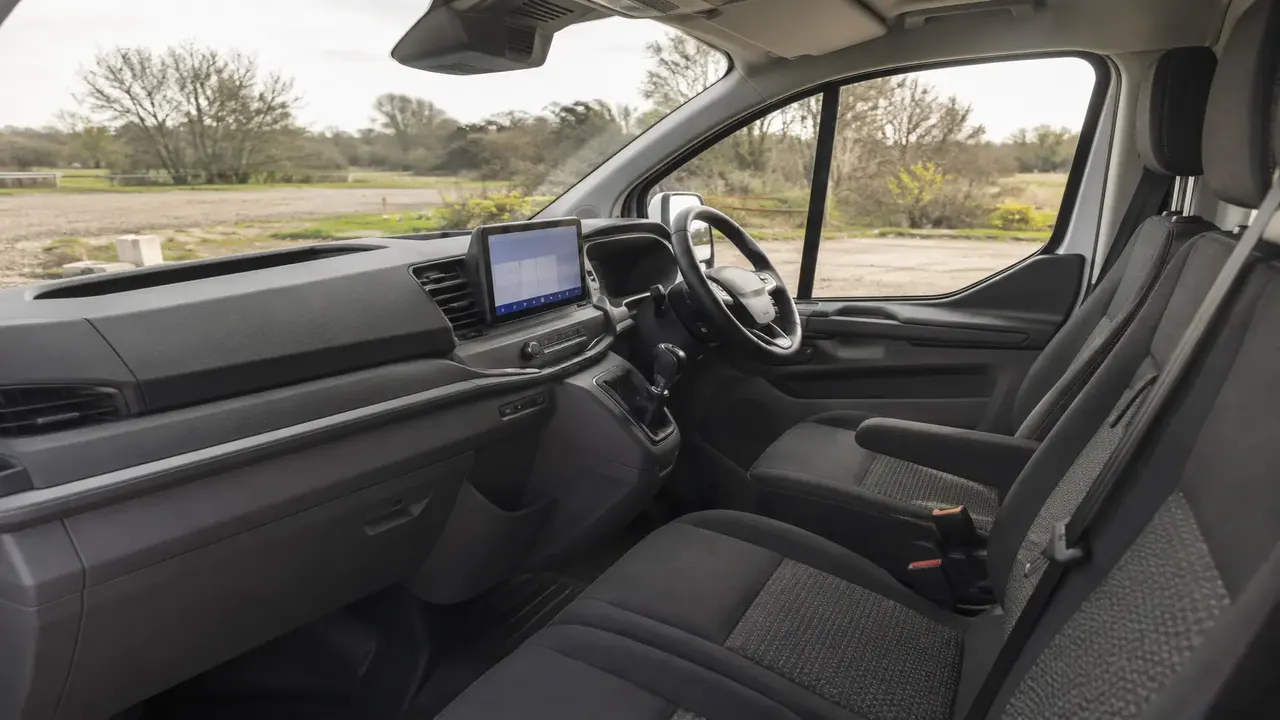

Interior, Comfort & Materials
Cargo variants feature durable vinyl seats, rubber flooring, and configurable bulkhead options.
Tourneo Custom offers cloth or leather-trimmed seats in 5-, 7-, or 9-seat layouts, with fold-and-tumble function.
Soft-touch dash panels, multifunction steering wheel, and chrome accents enhance perceived quality.
Ergonomic driving position with high seating, wide windscreen, and large door openings for easy ingress/egress.
| Storage | over-head shelf, deep door bins, under-seat trays, and centre console cubby. |
Features & Infotainment
SYNC 4 infotainment on 8″ touchscreen: Apple CarPlay, Android Auto, navigation, and over-the-air updates.
FordPass Connect modem provides remote locking, vehicle status, live traffic, and route planning via app.
Digital instrument cluster on upper trims; analog gauges on base.
Auxiliary sockets, USB-C charging ports, and optional 110 V power outlet.
| Tourneo comforts | dual-zone climate control, rear HVAC vents, ambient cabin lighting, and panoramic roof option. |
Safety & Ratings
| Euro NCAP (Tourneo) | 4-star rating (2015 protocol). Cargo vans are exempt from full NCAP. |
| Standard | ABS with EBD, ESC, Hill-Start Assist, Traction Control. |
| Available ADAS | Autonomous Emergency Braking (AEB), Lane-Keeping Assist, Blind-Spot Monitoring, Rear-Cross Traffic Alert. |
| Optional | Adaptive Cruise Control with Stop-&-Go, Traffic Sign Recognition, 360° camera system. |
Driving Performance
EcoBlue Diesel engines deliver strong low-end torque for laden starts and highway overtakes.
Manual gearboxes offer precise shift feel; the 6-speed auto enhances comfort in Tourneo.
| Suspension | front MacPherson struts and rear leaf springs (cargo) or coil springs (Tourneo) tuned for load-adaptive comfort. |
| Steering | electric-assist rack for light low-speed maneuvers and reassuring heft on open roads. |
| Maneuverability | tight 11.0 m turning circle eases urban and depot navigation. |
Fuel Efficiency
2.0 L EcoBlue Diesel
| Manual | ~5.5 L/100 km WLTP (≈51 mpg) |
| Automatic | ~5.8 L/100 km WLTP |
CO₂ Emissions: 145–155 g/km, depending on variant.
| Real-World | expect ~6.0 L/100 km under full load and mixed driving. |

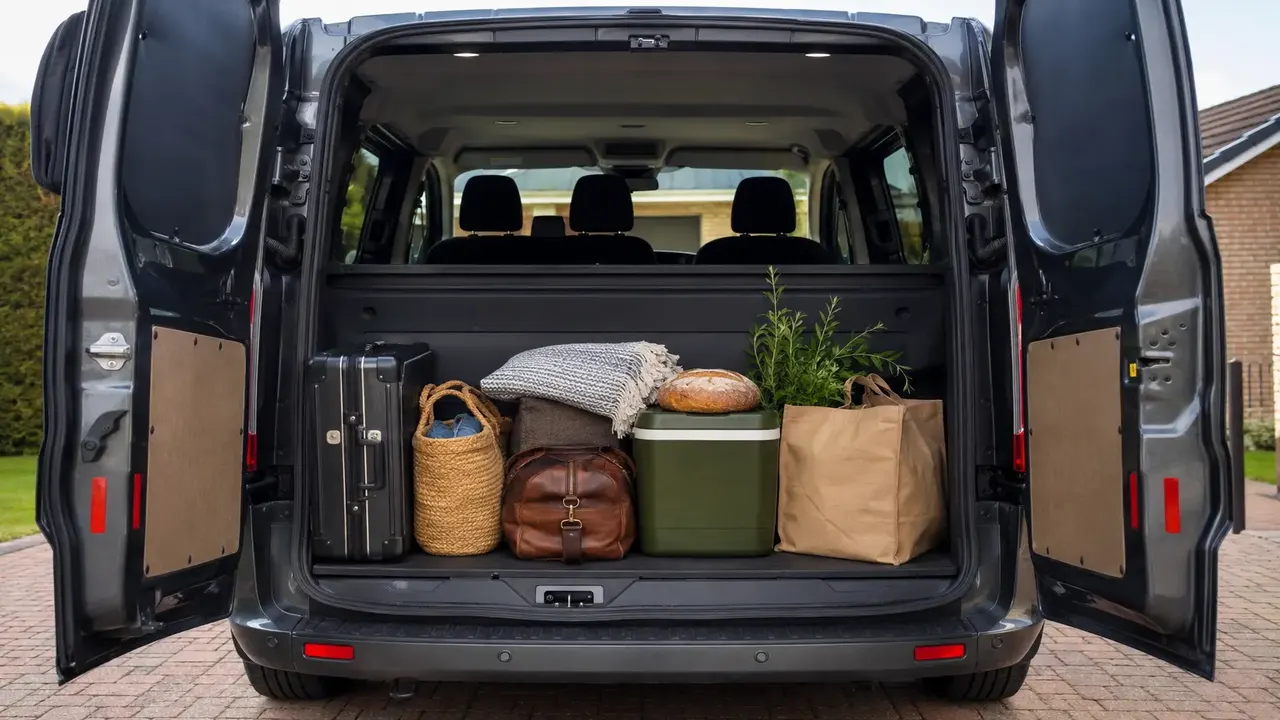

Practicality & Everyday Usability
| Cargo load length | up to 3,000 mm on L2 with folded passenger seat. |
Tie-downs and load-lashing rings standard; optional bulkhead and shelving kits.
| Payload | up to 1,200 kg on L1; 1,050 kg on L2. |
| Tourneo versatility | quick-release rear seats fold flat or remove for large-item transport. |
| Accessibility | low-floor cargo area and wide-opening doors facilitate quick loading/unloading. |
Warranty & Maintenance
| Vehicle Warranty | 3 years / 100,000 km. |
| Service Intervals | every 20,000 km or annually. |
| Ford Protect | prepaid maintenance, roadside assistance, and extended warranty plans available. |
| Fleet Support | Ford Telematics and customized servicing packages for commercial operators. |
Price & Value for Money
Starting Price (Europe)
| Cargo L1H1 Manual | ~€27,500 |
| Cargo L2H2 Manual | ~€29,800 |
| Tourneo Custom 5-seat Auto | ~€33,500 |
| Tourneo Custom 9-seat Auto | ~€36,000 |
| Trim Comparisons | higher grades add comfort and safety tech at competitive premiums vs. VW Transporter and Mercedes Vito. |
Comparison with Rivals
| Model | Price (From) | Cargo Vol. | Payload | Unique Strength |
|---|---|---|---|---|
| Ford Transit Custom | €27,500 | 6.0–8.3 m³ | 1,050–1,200 kg | Best balance of size & capacity |
| VW Transporter T6 | €30,000 | 5.8–9.3 m³ | 1,000 kg | German build & refinement |
| Mercedes Vito | €29,500 | 5.5–6.6 m³ | 1,100 kg | Premium cabin & options |
| Renault Trafic | €26,000 | 5.2–8.0 m³ | 1,200 kg | Value pricing & efficiency |
Pros & Cons
Pros
Excellent payload and load volume in a maneuverable footprint
Modern SYNC 4 connectivity and remote FordPass features
Comfortable driving dynamics, especially in Tourneo variant
Broad ADAS suite available for safety and convenience
Cons
Diesel NVH noticeable under heavy load
Base trims miss some advanced safety tech
Rear-wheel-drive layout limits traction under extreme loading
Manual shift may fatigue in urban stop-start duty
Overall Rating
4.2 / 5 stars
A highly capable mid-size van that strikes an optimal balance between commercial utility and passenger-car comfort.
Final Verdict
The 2025 Ford Transit Custom is ideal for small businesses, fleet operators, and people-movers who need a versatile, efficient mid-size van. Its combination of payload, connectivity, and driving ease makes it a standout choice in its segment.
Affiliate CTA
Ready to optimize your fleet or shuttle service?
Explore Transit Custom commercial offers
Compare finance & lease deals
Browse Transit Custom accessories & conversions
Sources
Ask ChatGPT
Pros & cons
- Good fit for UK buyers who choose the right trim
- Strong shortlist candidate when total costs are checked
- Final value depends heavily on trim, options and finance price
- Larger wheels can reduce ride comfort and raise tyre costs
- Availability, standard equipment and pricing may vary during the year
Final verdict
The Ford Transit Custom is a credible option in the UK market if it matches your priorities. The smartest approach is to decide what matters most - comfort, space, efficiency, performance, image or technology - then compare the exact trim against two or three rivals on the same route and the same finance basis. Choose the version that feels easiest to live with, not simply the one with the longest equipment list.
Buyer checkpoints
| Buyer checkpoint | True Motion Auto view |
|---|---|
| Best for | Drivers wanting balanced everyday usability. |
| Body style | Car |
| Powertrain focus | Petrol, diesel or hybrid depending on model year and trim |
| UK ownership note | Check insurance group, VED, charging or fuel costs and service-plan pricing before buying. |
| Verdict | Worth shortlisting if its size, running costs and equipment match your daily use. |
Frequently asked questions
Is the Ford Transit Custom good for UK roads?
Should I buy new or used?
What should I check before ordering?
Is it suitable for families?
SEO details
Specifications, prices and equipment were current at publication and vary by model year, trim and market. Verify final details with a franchised dealer before ordering. Read how we review cars and our editorial policy.
